Most mobile robot projects need the same foundation. The robot has to map a space, come back later and work out where it is, then drive to a goal without clipping a wall. If that loop is unreliable, adding perception or an AI agent just gives you a more complicated way to get stuck.
We built Robot Navigation to practice the whole loop in one place. Start a TurtleBot3 Waffle Pi in Gazebo, drive it around while SLAM Toolbox builds the map, and save the result. Then start a localization session, give AMCL an initial pose, save a few useful places as waypoints, and ask Nav2 to drive to one of them.
The last step looks almost too easy in the browser: click a goal and watch the robot move. Underneath that click, the pose has to line up with the map, the planner has to find a route, the controller has to produce velocity commands, and the sensors have to keep the robot clear of the walls. Learning how those pieces fit together is useful far beyond this demo. It is the same backbone you will rely on when you add autonomy, perception, or a physical robot.
A recorded Gazebo session viewed through Lichtblick. The robot, occupancy map, active plan, camera, and control panel update from the same ROS 2 system.
One loop, two environments
The app includes a simulated house and an industrial warehouse. We use the same workflow in both:
- Start the simulation.
- Drive while SLAM builds an occupancy map.
- Save the map and load it for localization.
- Give AMCL an initial pose.
- Send a goal or save the current pose as a waypoint.
- Watch Nav2 plan, control, and report status.
The browser workspace uses
Lichtblick with a committed
layout and the reusable Robium Dashboard extension. The same ROS data is also
available to the official Foxglove application at
ws://localhost:8765.
Lichtblick is the default because it can ship with the application and does not require an account. Foxglove remains useful for teams that want its broader product and support.
How the pieces connect
Gazebo publishes the simulated sensors and motion. ROS 2 navigation processes consume that data, then the bridge and application services expose it to the browser.
We keep the main ROS processes in one container and network namespace. This was mainly a practical Docker Desktop decision: DDS discovery between containers can be unreliable on macOS. The same image also works for local and hosted runs.
Gazebo publishes lidar, odometry, IMU, camera, and transforms. During mapping,
slam_toolbox turns lidar and odometry into an occupancy map. During
localization, AMCL estimates the robot pose on a saved map. Nav2 plans a route
and publishes velocity commands. foxglove_bridge carries the topics and
services to the browser.
The Dashboard stays separate from the app-specific ROS interfaces. Another project can reuse the extension with fewer controls, different service names, or no simulator section.
Start the stack
You need Git, Docker with Compose v2, a modern browser, and ports 8080 and 8765. The simulation does not require a GPU, physical robot, or system ROS install.
npx robium-ai@latest setup
git clone https://github.com/robium-ai/robium-apps.git
cd robium-apps/robot-navigation
./app doctor
./app runOpen http://localhost:8080. The robot and Gazebo start
in the background, but the application begins in IDLE. Mapping and
localization start only when requested.
The first image build can take about ten minutes. Later runs reuse it unless the source, dependencies, Dashboard, or simulation assets change. The application README covers remote access, remaining commands, and troubleshooting.
Build a map that localization can use
Choose House or Warehouse, enter a map name, and select Start mapping. Drive
with WASD, arrow keys, or the on-screen controls. The lidar scan appears in the
3D view while slam_toolbox expands the occupancy map.

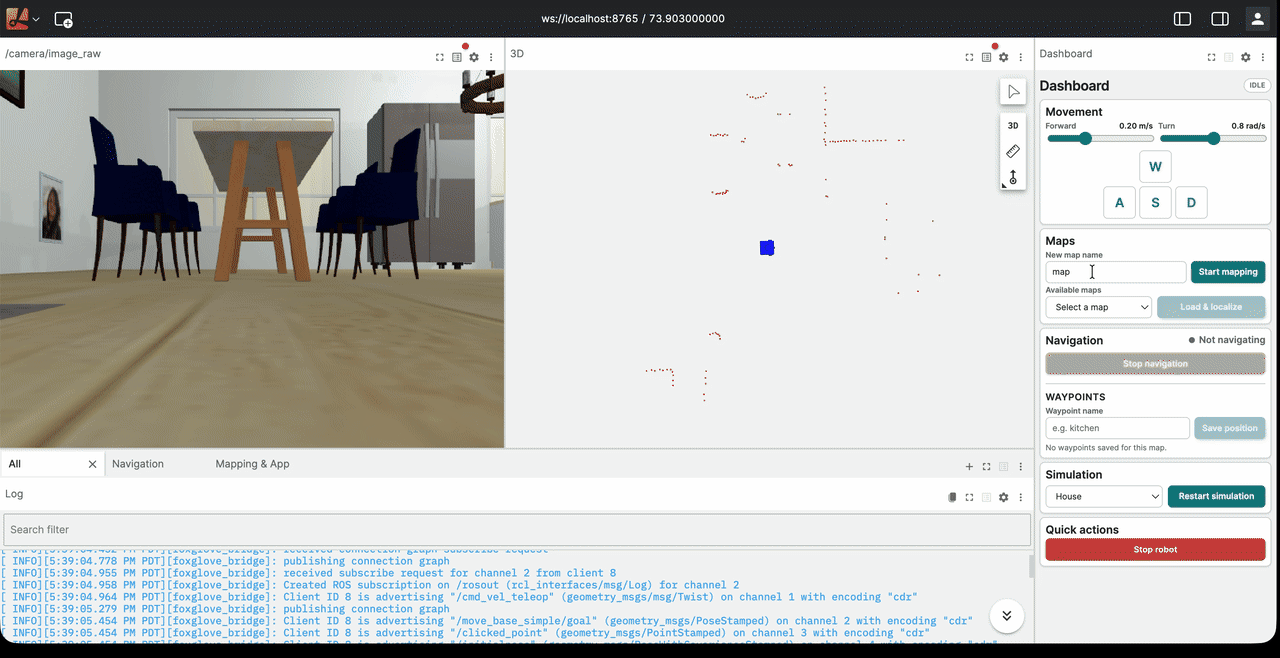

The camera, scan, occupancy map, logs, and Dashboard stay visible during the mapping run.
Do not rush this part just because the map looks filled in. Observe walls from more than one angle, and return near the starting area so SLAM can close the loop. A fast pass often leaves gaps or slightly doubled walls that cause trouble later during localization.
Finish mapping saves the files for the active environment and returns the app
to IDLE. Maps and waypoint sidecars remain local and untracked.
Localize before tuning the planner
Load the saved map, then set the robot’s initial pose and heading in the 3D panel. Before sending a goal, check that the map is visible, the scan aligns with nearby walls, and the robot model sits where expected.
If the scan is offset from the walls, fix the initial pose first. It is tempting to start changing Nav2 parameters when the robot will not move, but planner tuning cannot rescue a bad pose estimate.
[!DECISION] The workspace keeps localization, plans, and logs visible together because a missing route and a bad pose can look like the same “robot does not move” failure from a control panel alone.
Follow a route and save the destination
Use the 3D goal tool to select a reachable point and heading. Nav2 draws the global plan in cyan. The local controller plan appears in orange and adjusts as the robot moves.

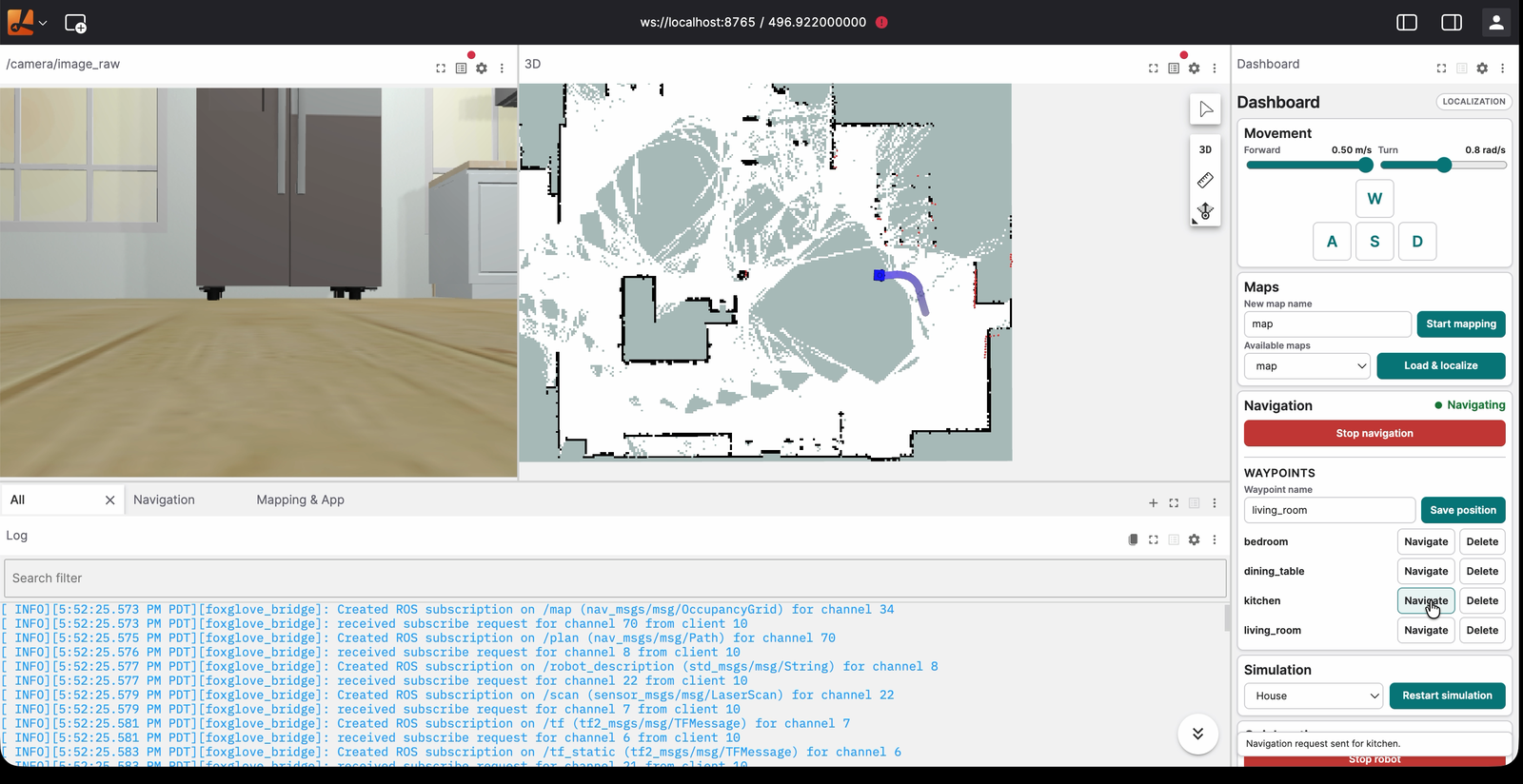

The saved map, localized robot pose, and active global route are visible before the robot starts moving.
A waypoint stores the robot’s current map-frame position and heading. Drive or
navigate to a useful place, give it a name, and select Save position. Waypoints
are stored per map in <map>.waypoints.json, so locations from one environment
do not appear in another.

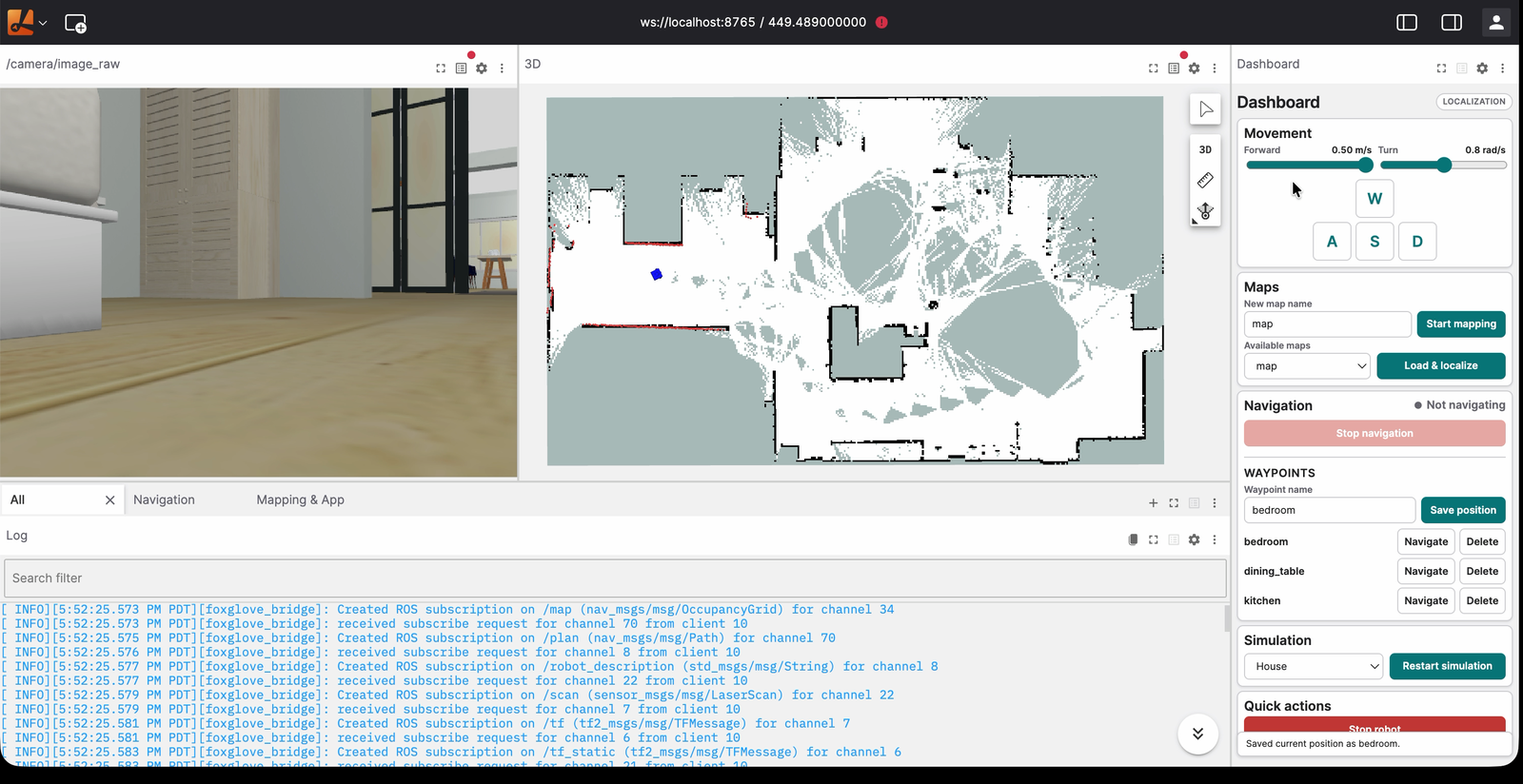

Bedroom, dining table, and kitchen remain attached to the selected house map.
Stop navigation cancels the active Nav2 goal. Stop robot also publishes zero velocity. In this simulated application it is a useful control, not a hardware emergency stop.
Read the visible layers before the logs
When the robot refuses to move, start with what you can see instead of opening every log at once:
- No map usually points to the session or map server.
- No global plan points to localization, the goal, or the planner.
- A global plan with no motion points farther down the command path.
- A changing local plan with repeated stops often points to sensors, costmaps, or collision monitoring.
Once you know which layer is missing, use the log panel to narrow it further.
It filters the shared /rosout stream into navigation, mapping, all ROS
messages, and application output. Remember that the plan display is supposed
to be empty until Nav2 receives a goal.
[!EVIDENCE] The recorded sessions cover mapping, map reuse, initial-pose correction, waypoint storage, and multiple navigation goals in Gazebo. They do not cover a physical TurtleBot3.
The Robium skills behind the build
architect helped us cut the first version down to one complete navigation loop. simulation and gazebo covered the worlds and sensor setup. visualization kept the map, pose, plans, transforms, camera, and logs on the same screen.
The single-container layout came from environments and integration. For the robot itself, we leaned on ros2, navigation, and foxglove for the topics, transforms, localization, Nav2 setup, and browser connection.
During debugging we kept coming back to one rule: follow the path in order. Check the map, then the pose, the plan, the command, and finally the motion. That caught problems with browser publishers, velocity message types, map sessions, simulation assets, and waypoint storage without turning every issue into a round of parameter tuning.
Simulation is the boundary
Everything in this tutorial runs in simulation: one TurtleBot3 model and two Gazebo environments. Moving it to a physical robot means doing the less tidy work too: hardware interfaces, networking, safety controls, and calibration. The bundled Lichtblick layout is the main browser experience. Foxglove can inspect the same ROS data, but it does not load the configured Dashboard workflow used here.
Source, smoke tests, architecture notes, and the reusable Dashboard live in the Robot Navigation repository. If something does not work, ask in the Robium Discord or create an issue with your operating system, Docker version, and the command output.
